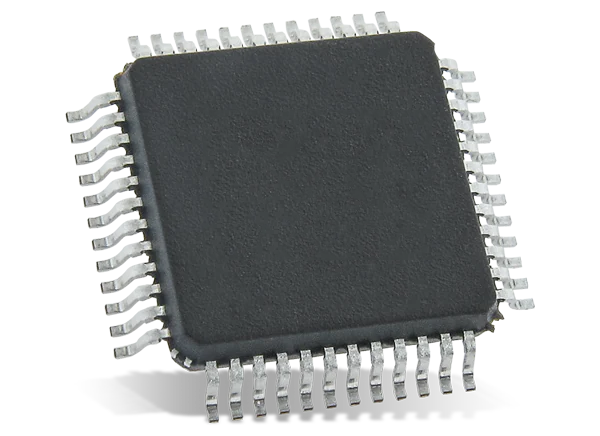

 LCD用 ドライバICの一覧

主にパッシブ液晶(LCD)で使用されているドライバICを一覧にまとめました。

メーカーごとに「回路図」「ブロック図」「ピン配列」「キャラクタフォント」等の
仕様を記載したPDFを掲載しております。
（仕様書の違いから、一部記載されていない項目もございます。）

目次（アルファベット順）

1. AVANT Semiconductor
2. エプソン / Epson Electronics
3. 日立製作所 / Hitachi
4. Holtek Semiconductor
5. Integrated Solutions Technology, Inc.
6. Neotec Semiconductor
7. Novatek Microelectronics Corp.
8. NXP Semiconductor
9. RAiO Technology Inc.

10. RockWorks Technology Corp.
11. サムスン電子 / Samsung Electronics
12. 三洋電機 / Sanyo Electronics
13. Sitronix Technology Corporation
14. Solomon Systech Limited
15. Sunplus Technology Co Ltd.
16. TOMATO LSI Inc.
17. 東芝 / Toshiba
18. Ultlachip INC.

1. AVANT Semiconductor

IC型番 内容 備考
SBN6400G 64 Channel Common Driver SBN6400G & SBN0064Gの組み合わせで使用
SBN0064G 64 Channel Segment Driver,Controller KS0108互換品
SBN0080G 80segments driver SBN0080G & SBN1661Gの組み合わせで使用
SBN1661G 16Commons*61segments LCD controller SED1520互換品
SDN8080G 80commons/segments,LCD driver
SAP1024B Mono Graphic LCD controller, LQFP67 Package,Compatible witd T6963C T6963C互換品

2. エプソン／Epson Electronics

IC型番 内容
SED1278 16commons,40segments,LCD Character Display Controller
SED1335(S1D13305) Mono Graphic LCD controller, LQFP67 Package
S1D13700 Mono Graphic LCD controller, LQFP67 Package
SED1520(S1D1520) 122 x 32 LCD Graphic Controllers
SED1565 65 common output and 132 segment outputs

3. 日立製作所 / Hitachi

IC型番 内容 備考
HD44100 40 Channel Segment Driver
HD44780U 16commons,40segments,LCD Character Display Controller
HD61202U 64 Channel Segment LCD Controller
HD61203 64 Channel Common Driver
HD61830 LCD Character Display Controller LC7981互換品
HD66100F 80 Channel Segment Driver

4. Holtek Semiconductor

IC型番 内容
HT1620 RAM Mapping 32X4 LCD Controller, Built-in capacitor type bias charge pump
HT1621 RAM Mapping 32X4 LCD Controller
HT1622 RAM Mapping 32X8 LCD Controller
HT1623 RAM Mapping 48X8 LCD Controller
HT49R10A-1 8-Bit MCU,LCD driver witd 15×2, 15×3 or 14×4 segments

5. Integrated Solutions Technology, Inc.

IC型番 内容
IST3088 320 x 240 Mono up to 16G STN-LCD Driver

6. Neotec Semiconductor

IC型番 内容 備考
NT7066U 16commons,40segments, LCD Controller
NT7065B 40commons/segments,LCD driver
NT7063B 80segments,LCD driver
NT7070 16commons,80segments,LCD Controller,SPI Interface
NT7086 80commons/segments,LCD driver
NT7107 64 Channel Common Driver NT7107 & NT7108の組み合わせで使用
NT7108 64 Channel Segment Driver,Controller KS0108互換品
NT7450 16Commons*61segments LCD controller

7. Novatek Microelectronics Corp.

IC型番 内容
NT3381 16commons,40segments, LCD Controller
NT3882 40commons/segments,LCD driver
NT7603 16commons,80segments, LCD Controller,Chip On Glass
NT7605 16commons,100segments, LCD Controller,Chip On Glass
NT7502 65 x 132 MONO LCD Graphic Controller
NT7532 65 x 132 MONO LCD Graphic Controller
NT7534 65 x 132 MONO LCD Graphic Controller
NT7538 65 x 132 MONO LCD Graphic Controller
NT75451 65 x 132 MONO LCD Graphic Controller
NT7701 160 Output LCD Segment/Common Driver, TCP (Tape Carrier Package)
NT7702 240 Output LCD Segment/Common Driver, TCP (Tape Carrier Package)
NT7703 160 Output LCD Segment/Common Driver, TCP (Tape Carrier Package)
NT7704 240 Output LCD Segment/Common Driver, TCP (Tape Carrier Package)
NT7705 160 Output LCD Segment/Common Driver, TCP (Tape Carrier Package)

8. NXP Semiconductor

IC型番 内容
PCF2116 Fam 2116 Family LCD Controller/Drivers I2C
PCF8531 34 x 128 pixel matrix driver
PCF8566 4×24 Segment LCD Controller I2C
PCF8576C 4×40 Segment LCD Controller I2C

9. RAiO Technology Inc.

IC型番 内容 備考
RA6963 Mono Graphic LCD controller, LQFP67 Package,Compatible witd T6963C T6963C互換品
RA8835 Mono Graphic LCD controller, LQFP67 Package,Compatible witd S1D13305 S1D13305互換品
RA8806 Gray-scale Graphic LCD controller(Chinese,Japanese,English, European) QFP100
RA8815 33 x 128 LCD Graphic Controller,3-wire/4-wire SPI(Chinese,Japanese,English,European)
RA8816 65 x 144 LCD Graphic Controller,IIC,3-wire/4-wire SPI(Chinese,Japanese,English,European)
RA8816N 65 x 144 LCD Graphic Controller,IIC,3-wire/4-wire SPI(Chinese,Japanese,English,European)
A8803,8822 Graphic LCD controller(Chinese,Japanese,English, European) QFP100

10. RockWorks Technology Corp.

IC型番 内容
RW1063-0B 16commons,40segments, Character LCD Controller
RW1065 32commons,64segments, Character LCD Controller

11. サムスン電子 / Samsung Electronics

IC型番 内容 備考
KS0065(S6A0065) 40 Channel Segment / Common Driver
KS0063(S6A2067) 80 Channel Segment Driver
KS0066(S6A0069 16commons,40segments, Character LCD Controller
KS0070(S6A0070) 16commons,80segments,LCD Controller
KS0093(S6A0093) 26commons,80segments,LCD Controller
KS0107(S6B0107) 64 Channel Common Driver KS0107 & KS0108の組み合わせで使用
KS0108(S6B0108) 64 Channel Segment Driver,Controller
KS0086(S6B0086) 80 Channel Segment / Common Driver
S6B0724 65 x 132 MONO LCD Graphic Controller

12. 三洋電機 / Sanyo Electronics

IC型番 内容
LC7981 Mono Graphic LCD controller, LQFP67 Package,QFP60
LC7985 16commons,40segments, Character LCD Controller
LC7940-41 80 Channel Segment Driver
LC7942 64 Channel Common Driver
LC79401 80 Channel Common Driver
LC79430 80 Channel Common Driver

13. Sitronix Technology Corporation

IC型番 内容
ST7066U 16commons,40segments, LCD Controller
ST7065C 40commons/segments,LCD driver
ST7063C 80segments,LCD driver
ST7025 96 x 9 Dots Segment-type LCD Controller/Driver
ST7026 48 x 4 Dots Segment-type LCD Controller/Driver
ST7032 18commons,80segments,LCD Controller,IIC
ST7036 26commons,80segments,LCD Controller,IIC
ST7070 16commons,80segments,LCD Controller,SPI
ST7528 132×128 Gray scale LCD Graphic Controller
ST7529 160×256 Gray scale LCD Graphic Controller
ST7541 128×129 Gray scale LCD Graphic Controller
ST7565R 65 x 132 MONO LCD Graphic Controller
ST7565P 65 x 132 MONO LCD Graphic Controller
ST7567 65 x 132 MONO LCD Graphic Controller
ST7586S 160×384 Gray scale LCD Graphic Controller
ST7588T 81 x 132 MONO LCD Graphic Controller
ST7920 33×64 Character/Graphic LCD Controller, BIG-5/GB code/Japanese/Korea
ST7921 80segments,LCD driver

14. Solomon Systech Limited

IC型番 内容
SSD1815B 132 SEG x 65 COM Mono STN
SSD1805 132 SEG x 68 COM Mono STN

15. Sunplus Technology Co Ltd.

IC型番 内容
SPLC780D1 16commons,40segments, LCD Controller
SPLC100A2 40commons/segments,LCD driver
SPLC063A1 80segments,LCD driver
SPLC783A 16commons,80segments,LCD Controller
SPLC501C 65 x 132 MONO LCD Graphic Controller
SPLC701B 11×12 and 6×12 Text and Graphics LCD controller, 54x120pixels,Kanji-font

16. TOMATO LSI Inc.

IC型番 内容
TL0313 65 x 132 MONO LCD Graphic Controller
TL0324S 65 x 132 MONO LCD Graphic Controller

17. 東芝 / Toshiba

IC型番 内容
T6963C Mono Graphic LCD controller, QFP67 Package
T6A39 80 Channel Common Driver
T6A40 68 Channel Row Driver

18. Ultlachip INC.

IC型番 内容
UC1538 160 x 240 4S STN LCD Controller-Driver
UC1601s 65 x 132 MONO LCD Graphic Controller
UC1698u 128 x 160 C-STN LCD Graphic Controller,SPI 3,4 lines
UC1608 128 x 240 MONO LCD Graphic Controller,SPI 3,4 lines
UC1611s 160 x 256 16-Grey scale LCD Graphic Controller,SPI 3,4 lines
UC1617s 128 x 128 4S STN LCD Controller-Driver
UC1701x 65 x 132 MONO LCD Graphic Controller
UCi7701c 160 Output LCD Segment/Common Driver, TCP (Tape Carrier Package)
UCi7702c 240 Output LCD Segment/Common Driver, TCP (Tape Carrier Package)
